Isolation Systems Flat Stackable ECUs (Environmental Control Units)

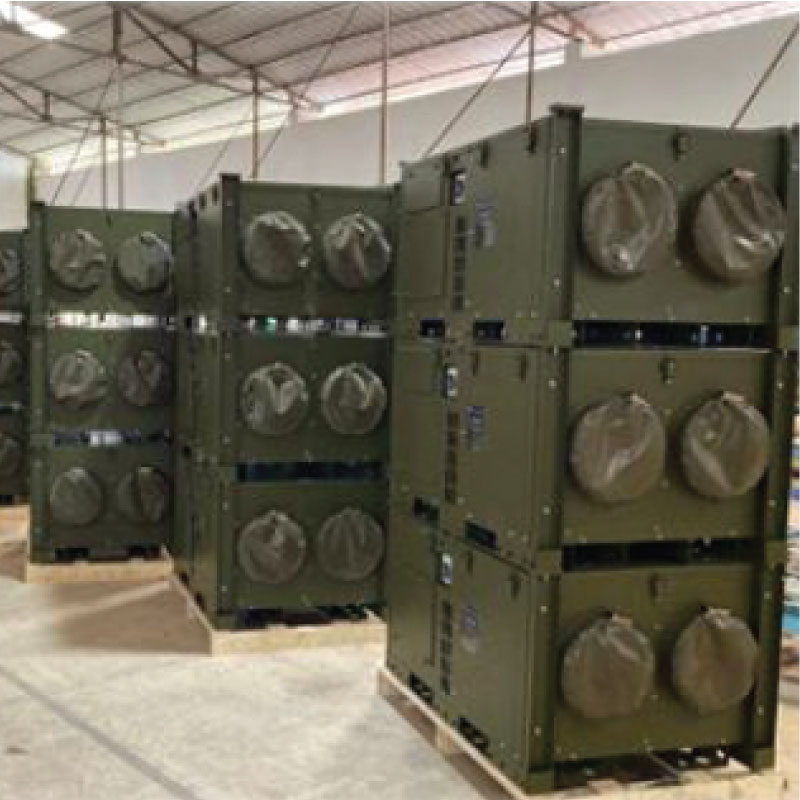

The Isolation Systems Flat Stackable ECUs are engineered for efficiency, portability, and space-saving performance. Designed to deliver reliable air conditioning, heating, and dehumidification, these units support infection control and environmental management in demanding healthcare and emergency response settings. Their stackable form factor maximizes storage and transport capabilities, ensuring rapid deployment without compromising comfort or safety.

Quantity

ISO-IF155COTS-DT
Isolation Systems 1.5 Ton Flat Stackable ECU (4 color options)

ISO-IF308COTS-DT-1PH
Isolation Systems 3 Ton Flat Stackable ECU (4 color options)

ISO-IF308COTS-DT-3PH
Isolation Systems 3 Ton Flat Stackable ECU (4 color options)

ISO-IF308COTS-DT-3PH400
Isolation Systems 3 Ton Flat Stackable ECU (4 color options)

ISO-IF512COTS-1PH
Isolation Systems 5 Ton Flat Stackable ECU- 208-240V/1Ph/60Hz

ISO-IF512COTS-3PH
Isolation Systems 5 Ton Flat Stackable ECU- 208-240V/3Ph/50-60Hz

ISO-IF512COTS-3PH400
Isolation Systems 5 Ton Flat Stackable ECU – 400V/3Ph/50Hz


	ISO-IF155COTS (4 Color Options)	ISO-IF308COTS (4 color options)	ISO-IF512COTS (3 pH Options)
Size	1.5 Ton	3 Ton	5 Ton
Description	The flat stackable 1.5-TON ECU delivers 18,000 BTU/h of cooling and 17,060 BTU/h of electric heating in a compact, all-weather design. Easy to transport and set up, it is well-suited for both short-term missions and extended field operations. As a COTS solution with 50/60 Hz compatibility, it offers reliable performance worldwide at a fraction of the cost of traditional Mil-Spec units.	The flat stackable 3-TON ECU delivers 36,000 BTU/h of cooling and 27,300 BTU/h of electric heating in a compact, all-weather package. Quick to set up and durable enough for extended use, it offers a cost-effective alternative to higher-priced Mil-Spec units while meeting most of the same requirements. With both 50 and 60 Hz capability, it ensures reliable performance worldwide.	The flat stackable 5-TON ECU delivers 62,000 BTU/h of cooling and 40,920 BTU/h of electric heating in a compact, all-weather package. Fast to set up and rugged enough for extended use, it provides a cost-effective alternative to higher-priced Mil-Spec units while meeting most operational needs. With 208–240V, 3-phase, 50/60 Hz capability, it ensures reliable performance worldwide.
Cooling Capacity	18,000 BTU/H	36,000 BTU/HR	62,000 BTU/HR
Heating Capacity	5KW Heat kit (17,060BTU/H)	27,300 BTU/H @ 208V	41,400 BTU/H @ 208V
Conditioned Air Supply	560 CFM	1200 CFM @ 0.1″ Wet Coil	2000 CFM @ 0.1″ Wet Coil
Dehumidifying
Refrigerant Type	R32	R407C or R410a	R407C
Operational Temps °F	-40F/C – 125F/51C	-40F/C – 125F/51C	-40F/C – 125F/51C
Ducts	(2) 8” SUPPLY/RETURN PORTS	12″ Supply/Return Ports	(2) 16″ Supply/Return Ports
Voltage	208-240V/1PH/50-60HZ	208-400V/1pH-3pH/50-60HZ	208-240V/3pH/50-60HZ
Max Power Cooling	9 RLA, 77 LRA		RLA 34.1 (8.2KW) LRA165
Max Power Draw		22 RLA @208V/3PH/60HZ
Max Power Heating	25 RLA, 77 LRA		12kW
Stackable	Yes	Yes	Yes
On Unit Controls	Vent/Heat/Cool/Auto	Vent/Heat/Cool/Auto
Remote Temp Control		Available as an option
Power Switch		Flush mount on unit
Wheel Kit	As an option	Available as option
Dimensions	28.5”L x 25.25”W x 20.5”H	42.50″L x 34.25″W x 27.00″H	51.75″L x 42.25″W x 26.25″H
Weight	141 LBS	398 lbs	510 lbs
