Generac Mobile Battery Energy Storage System (BESS)
The Generac Mobile Battery Energy Storage System (BESS) provides three-phase and single-phase power output for mobile power applications with the advantage of zero sound and zero emissions. When connected to a compatible generator, it creates a hybrid system optimizing generator and BESS operation to power varying load requirements. The BESS automatically turns the generator on to recharge the batteries and provide peak power output and off when not needed, thereby maximizing efficiency. Available in 2 sizes and skid or trailer mount.
The Generac Mobile Battery Energy Storage System (BESS) provides three-phase and single-phase power output for mobile power applications with the advantage of zero sound and zero emissions. When connected to a compatible generator, it creates a hybrid system optimizing generator and BESS operation to power varying load requirements. The BESS automatically turns the generator on to recharge the batteries and provide peak power output and off when not needed, thereby maximizing efficiency. Available in 2 sizes.
MBE30
MBE40
GEN-MBE30-TRL
Generac Mobile Battery Energy Storage System (BESS) – Trailered, 30KVA, 208/120 V 3-Phase Main Ouput, 60Hz, Gel Lead Acid OPzV-S Batteries)
GEN-MBE40-TRL
Generac Mobile Battery Energy Storage (BESS) – Trailered, 40 KVA, 120/240 V Single-Phase Main Ouput, 60Hz, Gel Lead Acid OPzV-S Batteries)
GEN-MBE30-SKD
Generac Mobile Battery Energy Storage System (BESS) – Skid, 30KVA, 208/120 V 3-Phase Main Ouput, 60Hz, Gel Lead Acid OPzV-S Batteries)
GEN-MBE40-SKD
Generac Mobile Battery Energy Storage (BESS) – Skid, 40 KVA, 120/240 V Single-Phase Main Ouput, 60Hz, Gel Lead Acid OPzV-S Batteries)
Reduced system fuel consumption
Reduced system carbon dioxide emissions
Zero emissions battery-only operation
Zero sound battery-only operation
MBE30
MBE40
Power and Voltage
30 kVA Three-Phase Prime Rated Power
208/120 V Three-Phase Main Output
120/240 V Single-Phase Convenience Receptacles
165 A Main Circuit Breaker
200 A Inverter Rating Passthrough
60 Hz
40 kVA Three-Phase Prime Rated Power
120/240 V Single-Phase Main Output
120/240 V Single-Phase Convenience Receptacles
165 A Main Circuit Breaker
200 A Inverter Rating Passthrough
60 Hz
Power Distribution
208/120 V Three-Phase Main Output Camlocks
(2) 120 V 20 A GFCI Duplex (NEMA 5-20R) Receptacles
(2) 120/240 V 30 A Twistlock (NEMA L14-30R) Receptacles
(1) 120 V 30 A Twistlock (NEMA L5-30R) Receptacle
120/240 V Single-Phase Main Output Camlocks
(2) 120 V 20 A GFCI Duplex (NEMA 5-20R) Receptacles
(2) 120/240 V 30 A Twistlock (CS6369) Receptacles
(1) 120 V 30 A Twistlock (NEMA L5-30R) Receptacle
Battery Technology
Deep cycle, Maintenance Free, Gel Lead Acid OPzV-S Batteries
Deep cycle, Maintenance Free, Gel Lead Acid OPzV-S Batteries
Charging Connections
208/120 V Three-Phase Main Input Camlocks
120 V 20 A Single-Phase (NEMA 5-15P) Maintenance Charge Plug
50 V 80 A DC Anderson SB175 Connector
2-Wire Remote Start Cable for Charging Generator
120/240 V Single-Phase Main Input Camlocks
120 V 20 A Single-Phase (NEMA 5-15P) Maintenance Charge Plug
50 V 80 A DC Anderson SB175 Connector
2-Wire Remote Start Cable for Charging Generator
Control System
Touch Screen HMI
On/Off Switch
Battery System Function Indicator Lights
Emergency Stop
Telematics Monitoring
Touch Screen HMI
On/Off Switch
Battery System Function Indicator Lights
Emergency Stop
Telematics Monitoring
Mobility
2-Point Top Lift
Trailer or skid, Dual-axle, Electric Brakes (Optional)
2-Point Top Lift
Trailer or skid, Dual-axle, Electric Brakes (Optional)
Connectivity
2 years included
4G Modem with Replaceable SIM Card
2 years included
4G Modem with Replaceable SIM Card
Warranty
2 Years or 750 Battery Cycles (Whichever Occurs First)
2 Years or 750 Battery Cycles (Whichever Occurs First)
MB30-90
Prime power output
24 kW/30 kVA
Frequency
60 Hz
Main Output Voltage
208/120 V three-phase
120 V, 20 A, 1-Phase GFCI Duplex (NEMA 5-2DR)
2
120 V, 20 A, 1-Phase Twistlock (NEMA L5-30R)
1
120/240 V, 30 A, 1-Phase Twistlock (L14-30R)
2
Main circuit breaker
165 A
Pass-through capacity (inverter rating)
200 A
Battery type
Gel lead acid 0PzV-s
Total battery capacity
90 kWh
Usable battery capacity
72 kWh

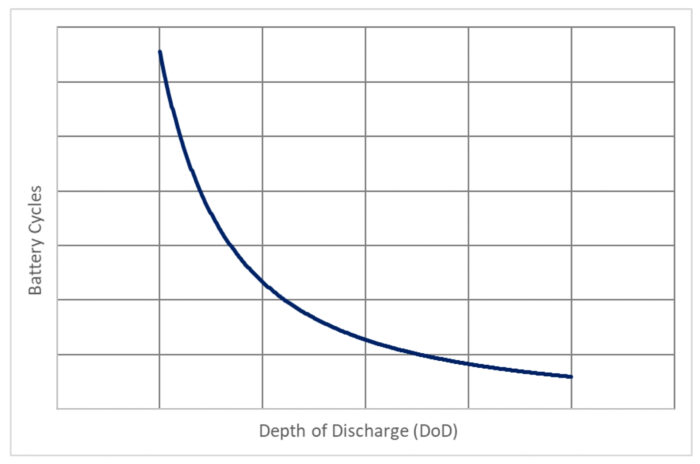

Battery design life (depth of discharge)
2,000 cycles to 80%, 3,000 cycles to 60%
Operating temperature
-4 to 113°F (-20 to 45°C)
Charging temperature
-4 to 113°F (-20 to 45°C)
Trailer Mounted
GEN-MBE30-TRL

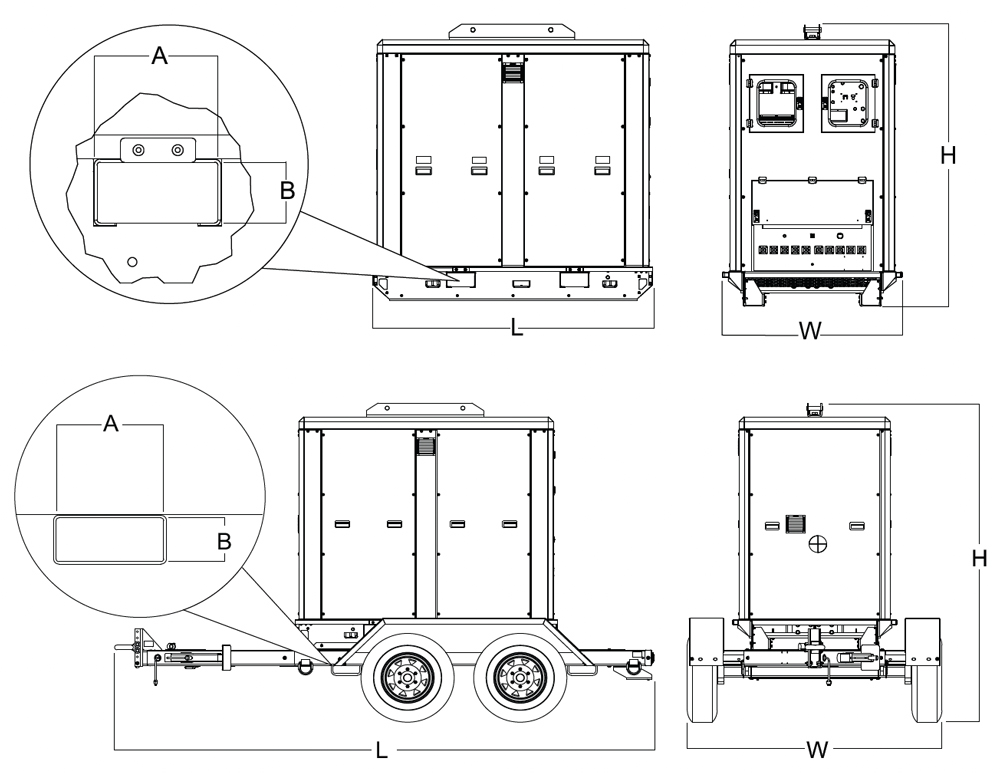

L x W x H – in (mm)
162.9 x 76.8 x 101.0 (4,137 x 1,951 x 2,585)
A x B – in (mm)
8.1 x 2.5 (205 x 95)
Weight (MBE40-90) – lbs (kg)
10,153 (4,615)
MB40-90
Prime power output
32 kW/30 kVA
Frequency
60 Hz
Main Output Voltage
120/240 V three-phase
120 V, 20 A, 1-Phase GFCI Duplex (NEMA 5-2DR)
2
120 V, 30 A, 1-Phase Twistlock (NEMA L5-30R)
1
120/240 V, 50 A, 1-Phase Twistlock (CS6369)
2
Main circuit breaker
165 A
Pass-through capacity (inverter rating)
200 A
Battery type
Gel lead acid 0PzV-s
Total battery capacity
90 kWh
Usable battery capacity
72 kWh
Battery design life (depth of discharge)
2,000 cycles to 80%, 3,000 cycles to 60%
Operating temperature
-4 to 113°F (-20 to 45°C)
Charging temperature
-4 to 113°F (-20 to 45°C)
Trailer Mounted
GEN-MBE40-TRL

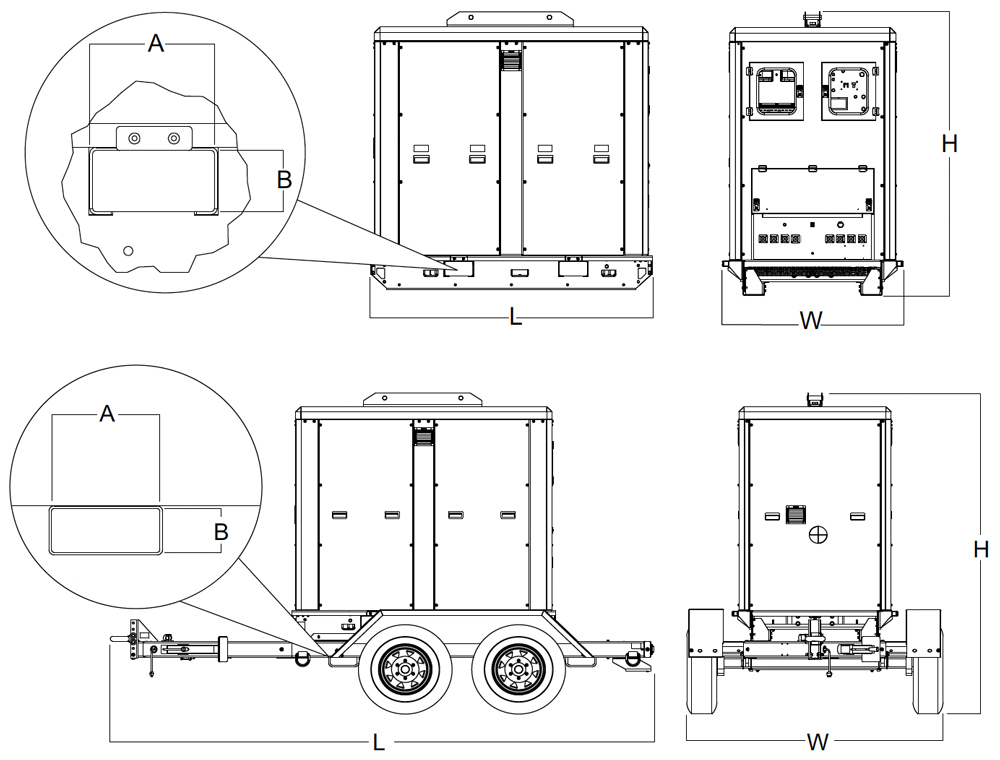

L x W x H – in (mm)
162.9 x 76.8 x 101.0 (4,137 x 1,951 x 2,585)
A x B – in (mm)
8.1 x 2.5 (205 x 95)
Weight (MBE40-90) – lbs (kg)
9,905 (4,502)
Generac BESS Product Range
(4) Skidded/Trailered BESS models
OPzV-S Lead Acid batteries
Included 2-wire generator start/stop cable to control generator
Higher capacity Li-ion battery options
Cycle — Charge/Discharge of battery energy regardless of the amount of energy
Percentage Capacity — measure of how much of the original capacity is left
Generac BESS Product Walkaround

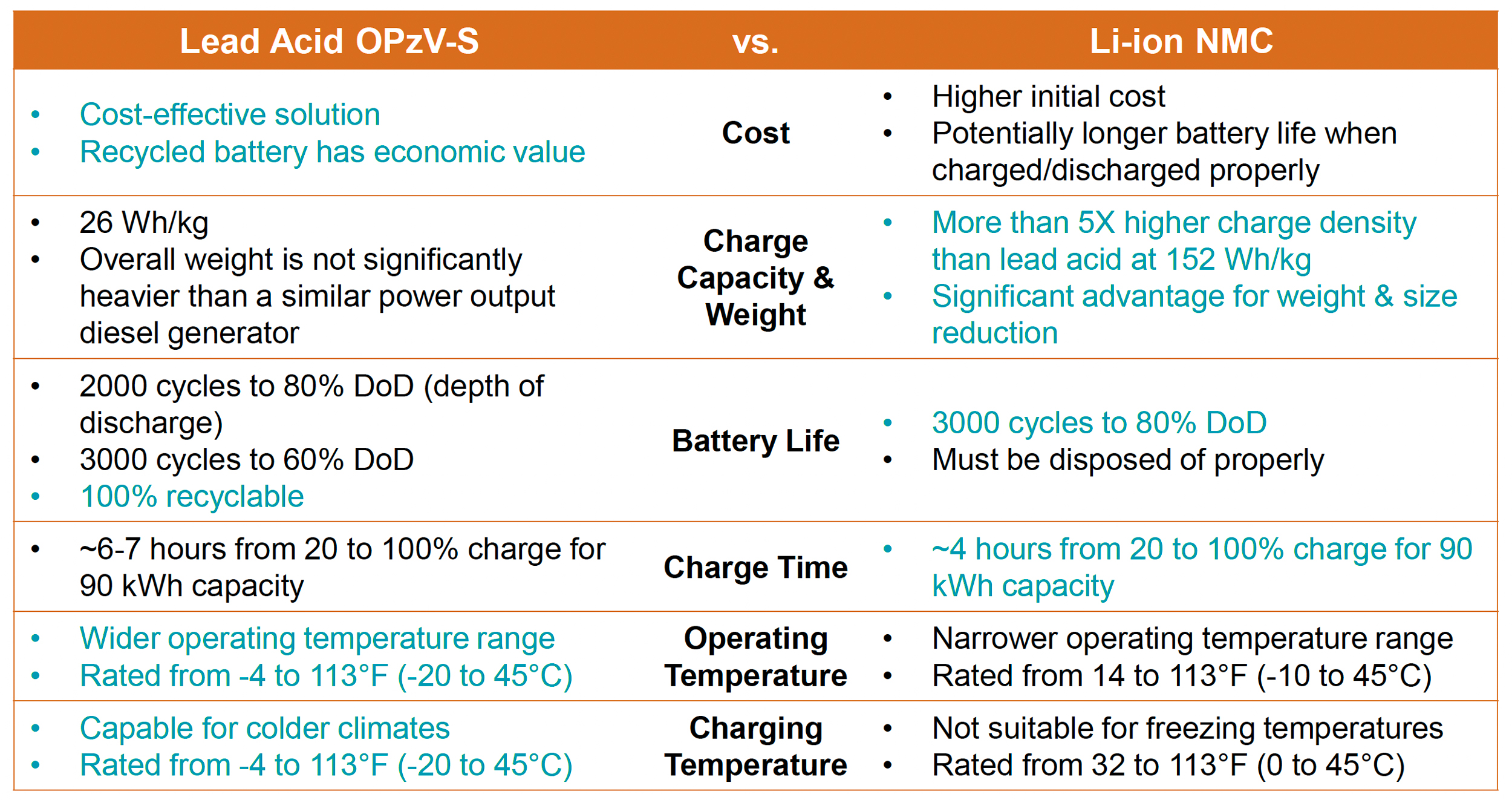

Generac BESS Battery Technology
Lead Acid & Lithium-ion battery options
Designed for high capacity, regular charge/discharge cycles
Automotive grade batteries proven for mobile applications

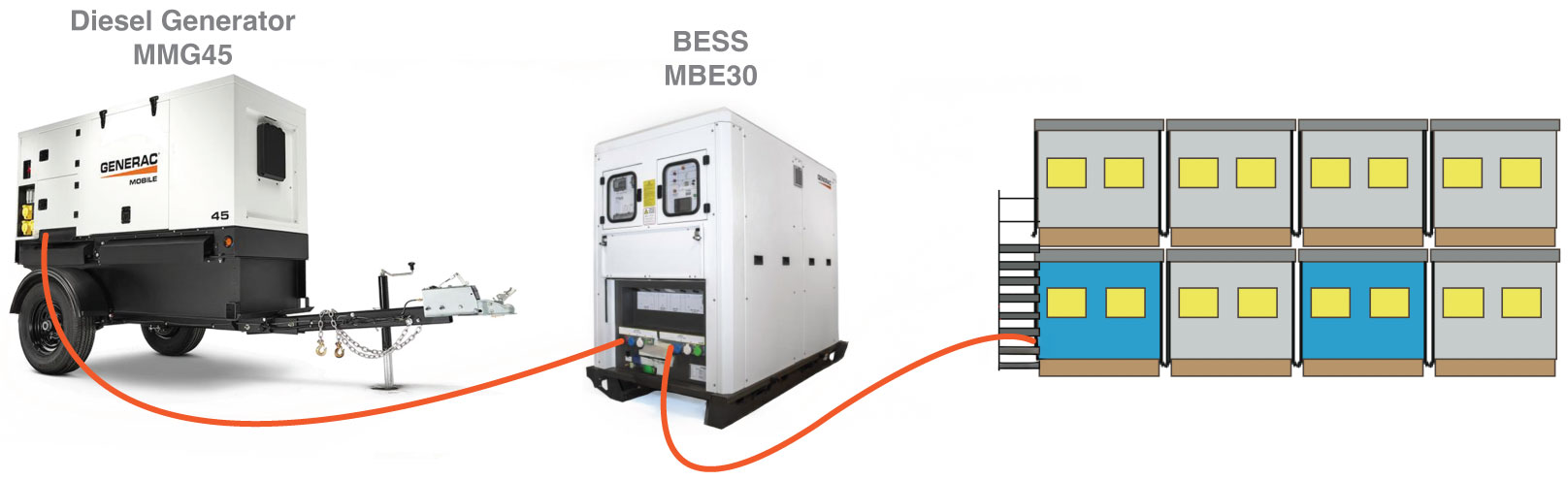

How to Use the Generac BESS
Temporary Power for a Job Trailer
As a result of adding a BESS to the power supply, a smaller, more fuel efficient generator (for the required load) can be used. Adding a battery energy storage unit enables the generator to run only at peak efficiency while powering loads and recharging the BESS.
Generac BESS Function

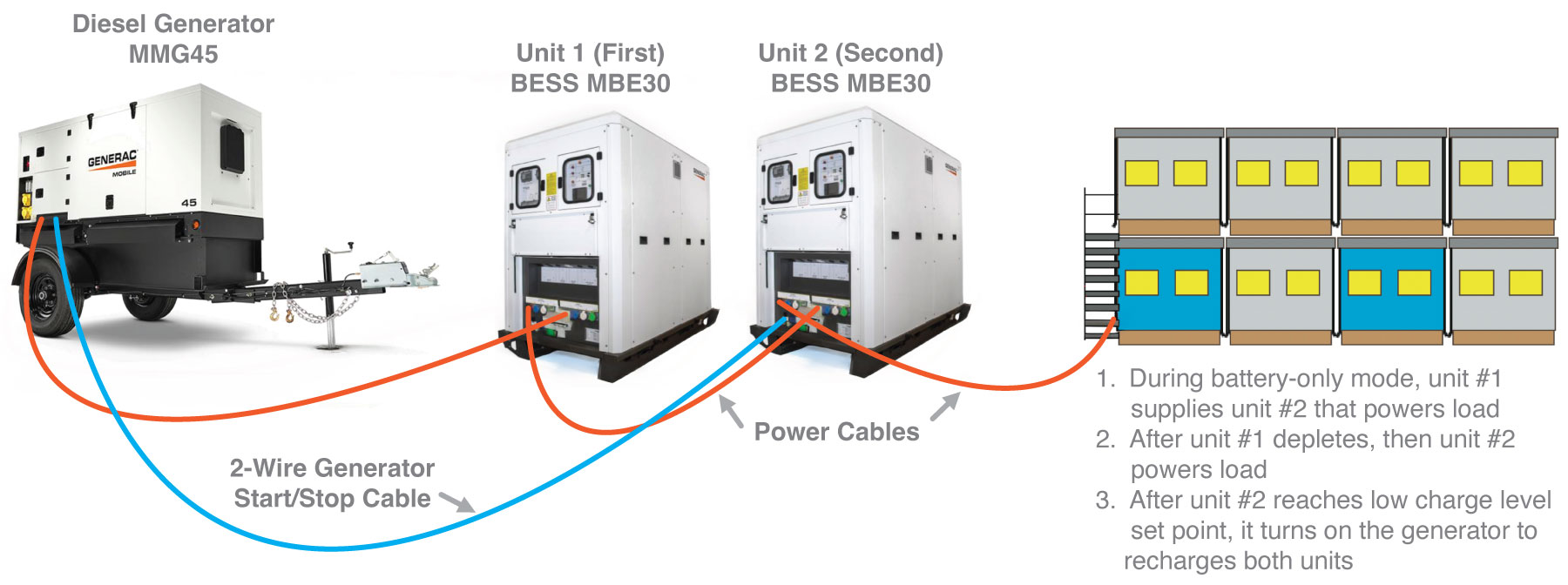

Generac BESS Scalable Power (Cascading)
Connect units together to increase BESS capacity extending battery-only runtime.
Connecting (2) MBE30-90s together effectively creates a 30 kVA BESS with 180 kWh capacity.
Generator Only vs. Generac BESS Hybrid System Operation
Direct Operating Costs
Generator Only Operation
Generator-BESS Hybrid System
Fuel Expense
Always burning fuel to meet base loads and for immediate load changes
Only operates diesel generator when needed and at optimal load
Fuel Delivery
Regular fuel deliveries to ensure continuous operation
Reduced frequency with improved fuel efficiency
Equipment Rental
Often a larger, oversized generator is selected to meet peak load requirement
Possibility that a smaller, more fuel efficient generator can be used
Maintenance Costs
Regular total hour of operation maintenance intervals
Reduced frequency of maintenance sessions due to reduced hours of operation
Emissions Credits
Carbon cost directly related to fuel consumption
Reduced consumption, reduced emissions cost
Indirect Costs
Generator Only Operation
Generator-BESS Hybrid System
Downtime
Loss of use during maintenance or equipment failure such as due to wet stacking
Improved system efficiency and reliability; telematics monitoring capability included in BESS
Restrictions
Loss of productivity due to sound or emissions regulations
Battery only operation expands opportunities for use
